Molybdenum crucible 2025
Category：
Keyword：
Molybdenum crucible 2025
Product Description
Characteristics:

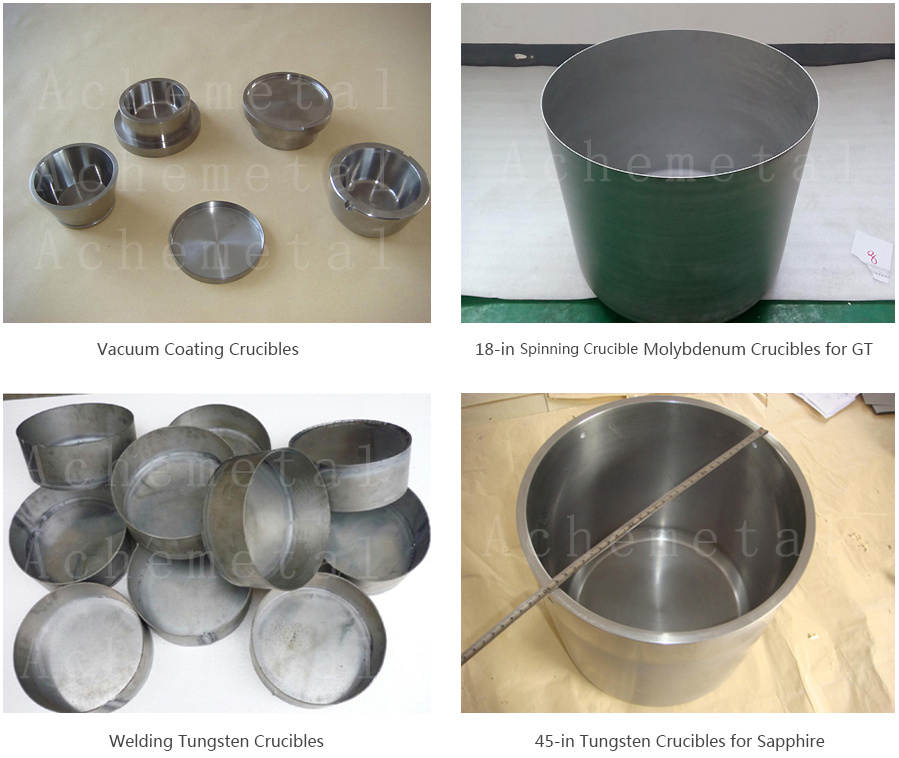

The crucibles produced by Luoyang Rusheng New Materials Technology Co., Ltd. include small tungsten crucibles processed by turning, molybdenum crucibles, plate spinning tungsten crucibles, spinning molybdenum crucibles, vacuum welded tungsten crucibles, molybdenum crucibles, large sintered tungsten crucibles, molybdenum crucibles, and sintered tungsten-molybdenum alloy crucibles.
The bar material processed crucibles are made from our company's high-quality bar materials, featuring high density, no internal cracks or sand holes, a bright surface, uniform color, and accurate dimensions.
The spinning crucibles are made from high-quality plates and our company's proprietary spinning equipment. Our spinning crucibles have accurate shapes, uniform thickness transitions, smooth surfaces, high purity, and strong creep resistance.
The welded crucibles are made from high-quality tungsten and molybdenum plates, welded using sheet metal processing and vacuum welding technology. Our welded crucibles have good roundness, smooth weld seams, firmness, and no air leakage.

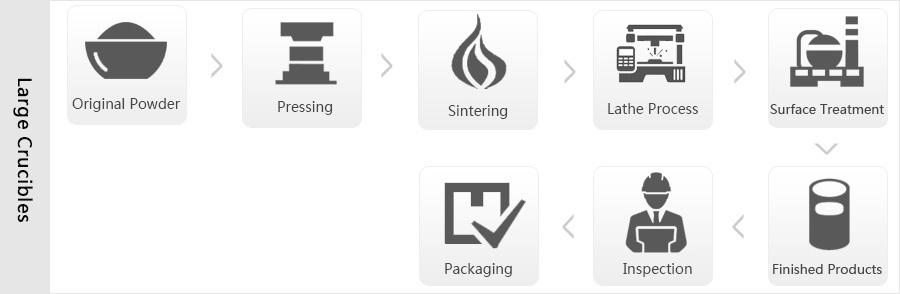

The sintered crucibles are made from high-quality tungsten and molybdenum powders, which are strictly screened, mixed, shaped, pressed, and processed. The sintering temperature gradient is scientifically controlled, with long insulation times, and the use of hot isostatic pressing technology ensures high density, fine grains, and good shaping of the crucibles.
Product Specifications
Regular Density: 9.8g/cm³~10.0 g/cm³;
Special Process Density: Greater than 10.1g/cm³.
Typical Specifications of Crucibles
Classification | Diameter (mm) | Height (mm) | Wall Thickness (mm) |
Bar Material Processed Crucible | 15~80 | 15~150 | 2~10 |
Spinning Crucible | 50~500 | 15~500 | 1~4 |
Welded Crucible | 50~500 | 15~500 | 1.5~5 |
Sintered Crucible | 80~1000 | 50~1000 | Above 5 |
Our company's crucibles are mainly used in:
▲ Vacuum Coating Industry
▲ Rare Earth Smelting Industry
▲Sapphire Crystal Furnace Industry
▲ Magnetic Materials Industry
